VSOP SMALL OUTLINE PACKAGE The VSOP package body size is compressed and the lead pitch is tightened to obtain a small version of the standard SOIC package. Lead counts range from 8 to 64. Body sizes are 209 and 300 mils. The VSOP package is JEDEC and EIAJ compliant. The package leads are solder plated.
REGISTER-LOGIN PRODUCTS CROSS REFERENCE INVENTORY REQUEST QUOTE ORDER ONLINE SITE MAP


semiconix semiconductor - where the future is today - gold chip technology VERRY SMALL OUTLINE PACKAGE

  VSOP 40, 48

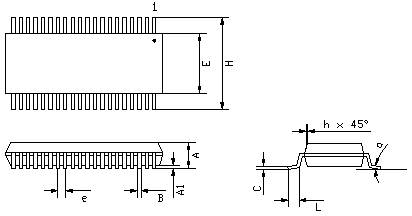

PACKAGE OUTLINE
VERRY SMALL OUTLINE PACKAGE

SHORT PACKAGE DESCRIPTION
VSOP SMALL OUTLINE PACKAGE The VSOP package body size is compressed and the lead pitch is tightened to obtain a small version of the standard SOIC package. Lead counts range from 8 to 64. Body sizes are 209 and 300 mils. The VSOP package is JEDEC and EIAJ compliant. The package leads are solder plated.

VSOP VERRY SMALL OUTLINE PACKAGE
JEDEC # MO - 154BB MO - 154AB
TYPE 40 LEAD 48 LEAD
SYMBOL Min.[mils] Max.[mils] Min.[mils] Max.[mils]
A 0.059 0.069 0.059 0.069
A1 0.004 0.008 0.004 0.008
B 0.0067 0.009 0.0051 0.008
C 0.0075 0.0098 0.0075 0.0098
D 0.386 0.394 0.386 0.394
E 0.150 0.157 0.150 0.157
e 0.0197 BCS 0.5 mm 0.0157 BCS 0.4 mm
H 0.228 0.244 0.228 0.244
h 0.010 0.016 0.010 0.016
L 0.023 0.029 0.023 0.029
a

Delivery for packaged standard products is 4-6 weeks ARO. Certain items may be available from stock. For standard products available from stock, there is a minimum line item order of $250.0. Inventory is periodically updated. For 2500pc or larger orders, all surface mount packaged devices are shipped in tape on reel (T/R). For smaller quantities, it may vary. Samples are available only for customers that have issued firm orders pending qualification of product in a particular application. On line Orders have to be verified, accepted and acknowledged by Semiconwell sales department in writing before, becoming non cancelable binding contracts.

Semiconix guarantees continuous supply and availability of any of it's standard products provided minimum order quantities are met.

SEMICONIX has made every effort to have this information as accurate as possible. However, no responsibility is assumed by SEMICONIX for its use, nor for any infringements of rights of third parties which may result from its use. SEMICONIX reserves the right to revise the content or modify its product line without prior notice. SEMICONIX products are not authorized for and should not be used within support systems which are intended for surgical implants into the body, to support or sustain life, in aircraft, space equipment, submarine, or nuclear facility applications without the specific written consent.
