semiconix semiconductor - where the future is today - gold chip technology SHRINK SMALL OUTLINE PACKAGE

  SSOP

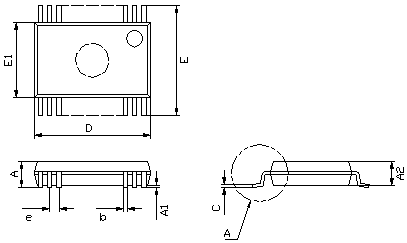

PACKAGE OUTLINE
SHRINK SMALL OUTLINE PACKAGE
SHRINK SMALL OUTLINE PACKAGE

SHORT PACKAGE DESCRIPTION
SSOP SHRINK SMALL OUTLINE PACKAGE - The SSOP package body size is compressed and the lead pitch is tightened to obtain a small version of the standard SOIC package. Lead counts range from 8 to 64. Body sizes are 209 and 300 mils. The SSOP package is JEDEC and EIAJ compliant. The package leads are solder plated.

SYMBOLCOMMON DIMENSION [inch]
MINNOMMAX
A.0681.73.0731.86.0782.00
A1.002.05.13.008.20
A2.0651.65.0691.75.0731.85
b.009.22.012.30.015.38
b1.009.22.012.30.013.33
c.004.09.006.15.010.25
c1.004.09.006.15.008.21
DSEE VARIATIONS
E.2917.40.3077.80.323.820
E1.1975.00.2095.30.221.560
e.026 INCH 0.65 MM BSC
L.022.55.030.75.037.95
N (Leads)SEE VARIATIONS
R.004.09
a048
VARIATIONSDLeads
MINNOMMAX
[INCH][MM][INCH][MM][INCH][MM]
AE.2716.90.2837.20.2957.5020
AG.3117.90.3238.20.3348.5024
AH.3909.90.40210.20.41310.5028
