SEMICONIX SEMICONDUCTOR - SIP SINGLE INLINE PACKAGE SIP package is a rectangular through hole mount with leads located on one length sides of the package. SOT package are JEDEC compliant. The lead pitch is the same, 0.1 mils. Sizes vary from 4 to 14 pins

SIP package is a rectangular through hole mount with leads located on one length sides of the package. SOT package are JEDEC compliant. The lead pitch is the same, 0.1 mils. Sizes vary from 4 to 14 pins


	SINGLE IN LINE PACKAGE

	SIP 12,14,20,24

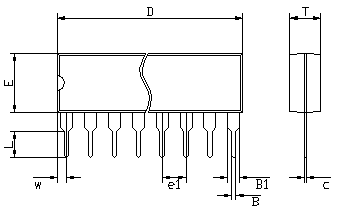

PACKAGE OUTLINE

SHORT PACKAGE DESCRIPTION

SIP SINGLE INLINE PACKAGE is a rectangular through hole mount with leads located on one length sides of the package. SIP package are JEDEC compliant. The lead pitch is the same, 0.1 mils. Sizes vary from 12 to 24 pins.

SIP SINGLE INLINE PACKAGE (Wide)
TYPE	12 LEAD		14 LEAD		20 LEAD		24 LEAD
SYMBOL	MIN.	MAX.	MIN.	MAX.	MIN.	MAX.	MIN.	MAX.
A	0.150	0.190	0.150	0.190	0.150	0.190	0.150	0.190
A1	0.015	0.040	0.015	0.040	0.015	0.040	0.015	0.040
B	0.016	0.020	0.016	0.020	0.016	0.020	0.016	0.020
B1	0.045	0.070	0.045	0.070	0.045	0.070	0.045	0.070
C	0.009	0.012	0.009	0.012	0.009	0.012	0.009	0.012
D	1.240	1.250	1.440	1.460	2.050	2.060	2.420	2.430
E	0.600	0.625	0.600	0.625	0.600	0.625	0.600	0.625
E1	0.530	0.560	0.530	0.560	0.530	0.560	0.530	0.560
e	0.090	0.110	0.090	0.110	0.090	0.110	0.090	0.110
eA	0.610	0.680	0.610	0.680	0.610	0.680	0.610	0.680
L	0.120	0.140	0.120	0.140	0.120	0.140	0.120	0.140
