semiconix semiconductor - where the future is today - gold chip technology MICRO SMALL OUTLINE PACKAGE

  MSOP 8

PACKAGE OUTLINE
MICRO SMALL OUTLINE PACKAGE

SHORT PACKAGE DESCRIPTION
MICRO SMALL OUTLINE PACKAGE MSOP is a rectangular surface mount integrated circuit with eight gull wings leads. The leads are on two length sides of the package. MSOP packages are JEDEC compliant.

SMALL OUTLINE INTEGRATED CIRCUIT 8 PIN

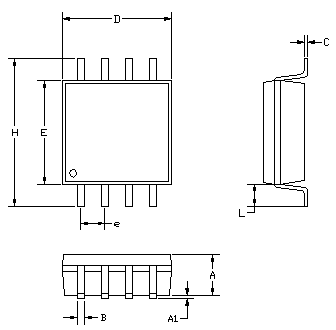

Dimension Min (inches, [mm]) Max (inches, [mm])
  [inches] [mm] [inches] [mm]
A 0.0433 1.10 0.0512 1.30
A1 0.0039 0.10 0.0060 0.15
B 0.0039 0.10 0.0120 0.30
C 0.0039 0.10 0.0098 0.25
D 0.1142 2.90 0.1169 2.97
E 0.1102 2.80 0.1102 2.80
e 0.0256 0.65 0.0256 0.65
H 0.1563 3.97 0.1587 4.03
L 0.0236 0.60 0.0236 0.60

Delivery for packaged standard products is 4-6 weeks ARO. Certain items may be available from stock. For standard products available from stock, there is a minimum line item order of $250.0. Inventory is periodically updated. For 2500pc or larger orders, all surface mount packaged devices are shipped in tape on reel (T/R). For smaller quantities, it may vary. Samples are available only for customers that have issued firm orders pending qualification of product in a particular application. On line Orders have to be verified, accepted and acknowledged by Semiconwell sales department in writing before, becoming non cancelable binding contracts.

Semiconix guarantees continuous supply and availability of any of it's standard products provided minimum order quantities are met.
