semiconix semiconductor - where the future is today - gold chip technology PLASTIC DUAL IN LINE PACKAGE

  PDIP 600 Mils

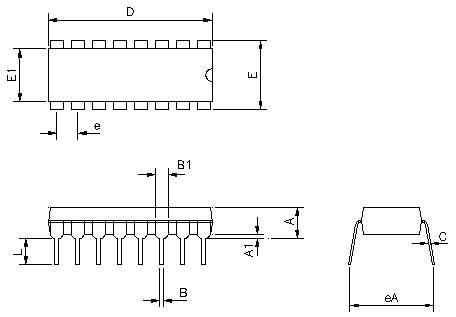

PACKAGE OUTLINE
PLASTIC DUAL IN LINE PACKAGE

SHORT PACKAGE DESCRIPTION
DIP package is through-hole integrated circuit mount package. These are basic packages developed in the last thity years. There are many additional types of DIP packages. DIP components come packaged in tubes, bulk, and tape and reel. Popular sizes are DIP 300 mil body and DIP 600 mil body, 8 to 48 pins.

PLASTIC DUAL IN LINE PACKAGE 600MIL BODY
Dimension [mils] 24 LEAD 28 LEAD 40 LEAD 48 LEAD
  min max min max min max min max
A 0.150 0.190 0.150 0.190 0.150 0.190 0.150 0.190
A1 0.015 0.040 0.015 0.040 0.015 0.040 0.015 0.040
B 0.016 0.020 0.016 0.020 0.016 0.020 0.016 0.020
B1 0.045 0.070 0.045 0.070 0.045 0.070 0.045 0.070
C 0.009 0.012 0.009 0.012 0.009 0.012 0.009 0.012
D 1.240 1.250 1.440 1.460 2.050 2.060 2.420 2.430
E 0.600 0.625 0.600 0.625 0.600 0.625 0.600 0.625
E1 0.530 0.560 0.530 0.560 0.530 0.560 0.530 0.560
e 0.090 0.110 0.090 0.110 0.090 0.110 0.090 0.110
eA 0.610 0.680 0.610 0.680 0.610 0.680 0.610 0.680
L 0.120 0.140 0.120 0.140 0.120 0.140 0.120 0.140
